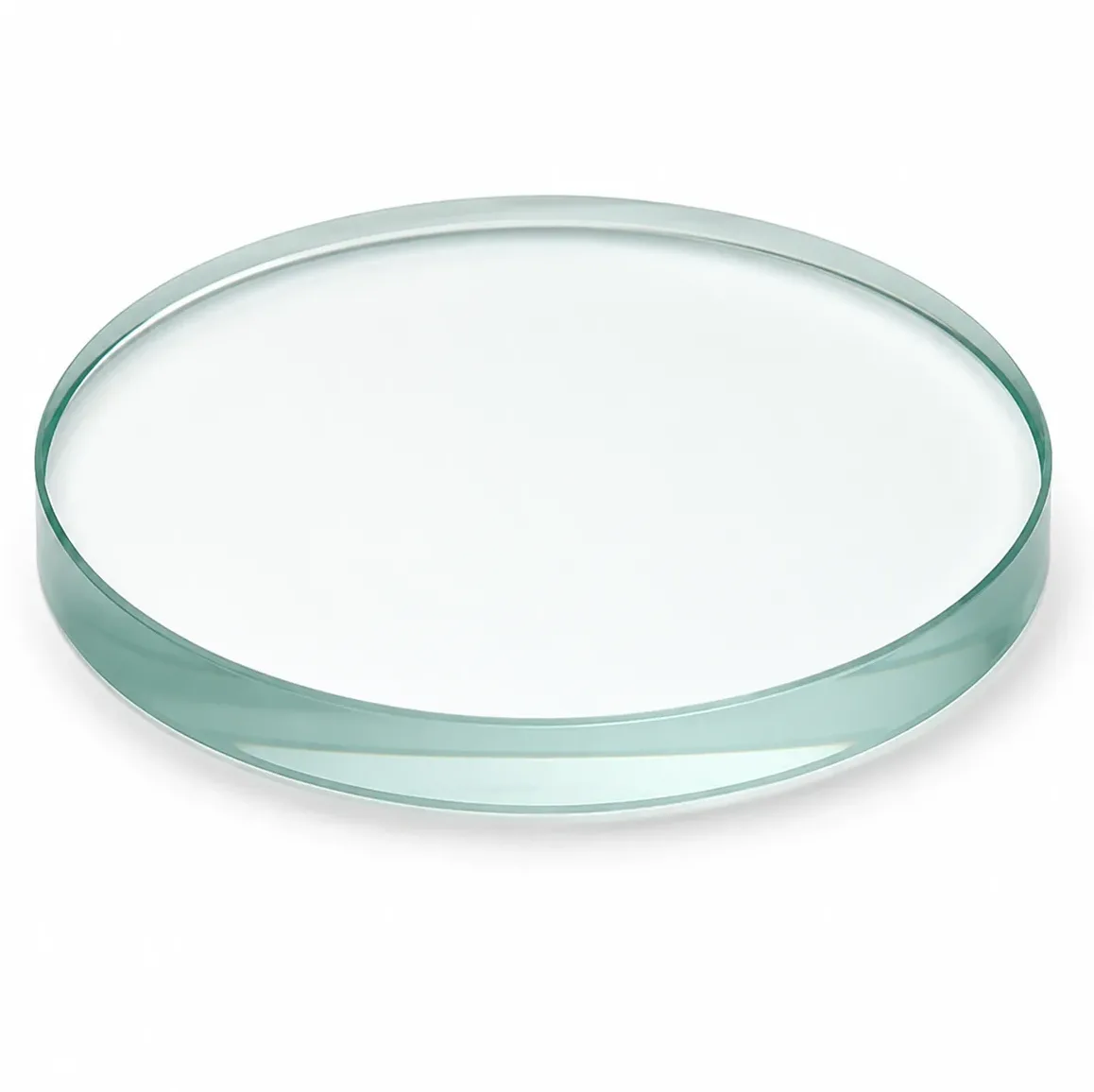

Sight Glass Ø119 mm
4.418,75 kr.
Quality standard ………………… : DIN 7080
Material …………………………….. : Toughened borosilicate glass
Dimensions ………………………… : Ø119 × 15 mm
2 in stock
Description
Max. working pressure ………. : 10 bar
Max. working temperature : 280 °C (max. 243 °C when continuously exposed to
saturated steam, hot water or aggressive media)
Compressive surface stress …. : Min. 100 N/mm²
Hydrolytic resistance ………….. : Class HGB 1 according to DIN ISO 719
Acid resistance …………………… : Class according to DIN ISO 1776, max. 100 µg Na₂O/100 cm²
Alkali resistance …………………. : Class A2 according to DIN ISO 695
