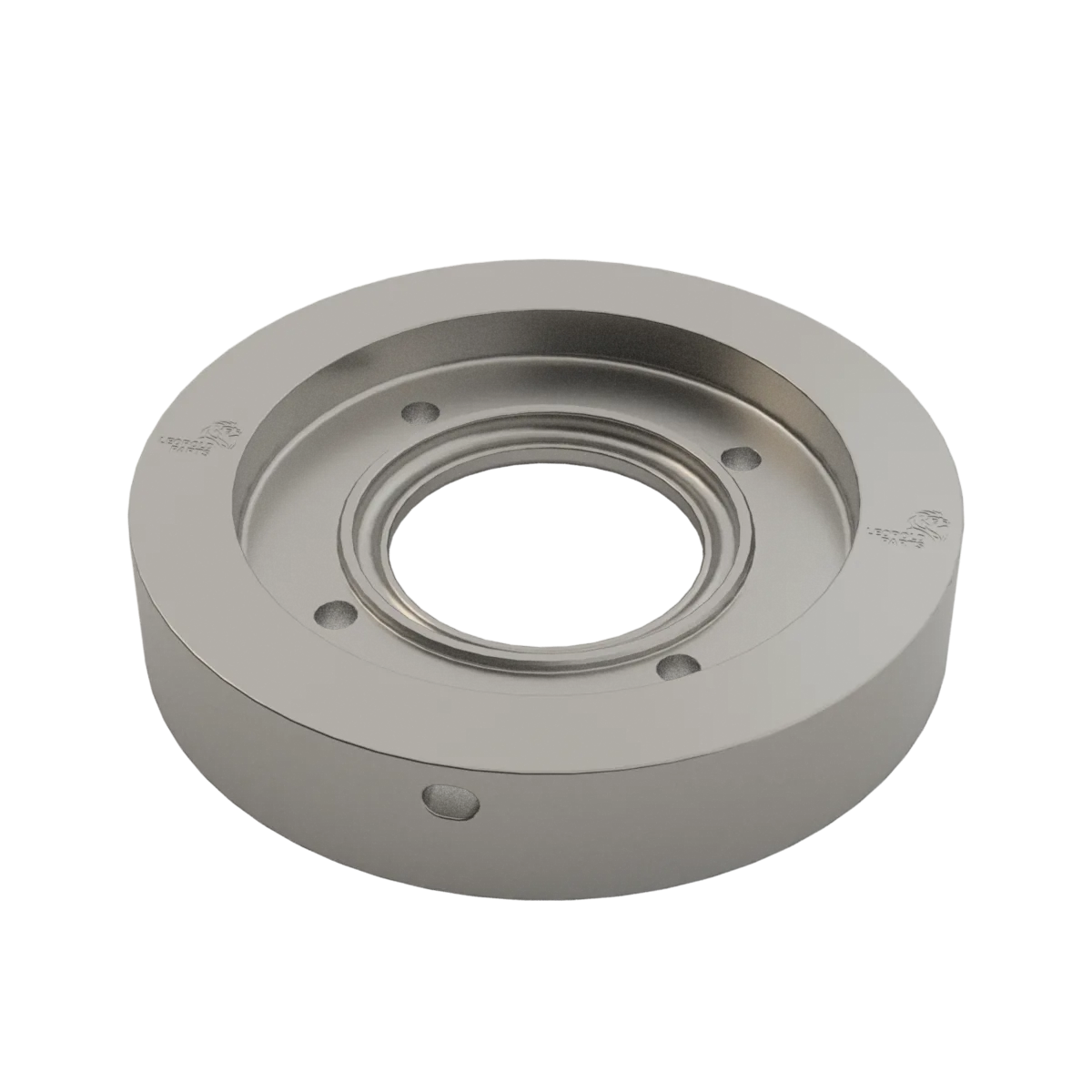

CS-Connector - DIN - DN50 (53.0 x 1.5 mm) - EHEDG

CS-Connector – DIN – DN50 (53.0 x 1.5 mm) – EHEDG

Price range: 1.950,00 kr. through 7.750,00 kr.

EHEDG-certified welded flange for DIN DN50 (53.0 × 1.5 mm). Stainless steel EF Clean Seal Connector for hygienic connections to tanks and process equipment. Select a length or inquire about customization to fit the tank’s radius.

Material: 1.4404/1.4301 · Part Number: EF-CSC0500-DIN

EHEDG Certified – hygienic design

SKU: EF-CSC0500-DIN Categories: , , Tags: , , , , , , , , , , ,

Description

EHEDG-certified weld-in flange – DIN DN50

The EF Clean Seal Connector for DIN DN50 is compatible with pipe dimensions of 53.0 × 1.5 mm. The stainless-steel flange is welded into tanks or process equipment and provides a hygienic connection to a piping system of the corresponding dimension.

The flange connection is designed in accordance with DIN 11864-2. The hygienic design is EHEDG-certified and developed for systems where ease of cleaning and documentation are important. Select the desired length above, and contact Leopold Parts if the flange needs to be customized to the tank’s radius or mounting angle.

Dimensions and Documentation

  • Pipe standard and size: DIN DN50
  • Tube dimensions: 53.0 × 1.5 mm
  • Item Number: EF-CSC0500-DIN
  • Material: stainless steel 1.4404/1.4301

See the EHEDG certificate and the associated welding instructions in the attached files.

Welding instruktion

Download

Installation and welding specification for CS-Connector

EHEDG Certificate

Download

EHEDG stands for the European Hygienic Engineering & Design Group, founded in 1989. It is a global group of experts that creates rules for safe, clean factory equipment. They help make sure machines used to make food, drinks, and medicine are easy to clean and keep safe from germs. TYPE EL - Equipment cleaned with Liquids EL Class I Closed or open equipment, wet cleaned-in-place (CIP) without dismantling
